Features:◆CEsafetylevel4certification;◆Multiplespecificationsandmodels,withawiderangeofapplications;◆Completeself-checkfunction;◆Multiplefixingmethods,easyandfastinstallation;◆Strongresistancetoelectr...

product

Features:

◆CE safety level 4 certification;

◆Multiple specifications and models, with a wide range of applications;

◆Complete self-check function;

◆Multiple fixing methods, easy and fast installation;

◆Strong resistance to electromagnetic and optical interference;

◆Strong vibration resistance, waterproof and dustproof performance;

◆With working status, wiring, and fault indication;

◆ Dual NPN/PNP safe output with reverse pulse;

◆ Equipped with EDM and auxiliary output functions.

Parameters:

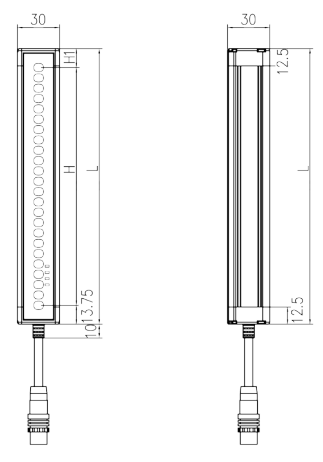

H: protection height, L: sensor's height

Protection distance	0~8000mm
Protection height	（beams-1）×light axis pitch
Light axis pitch	7.5mm, 15mm, 30mm
Resolution	14mm, 21mm, 36mm
Power supply	DC12V~24V
Working current	<200mA
Loading current	<200mA
Response time	（beams-1）×0.3+1ms
DC	>99%
Safety level	PL e（EN ISO 13849-1）
Sealing level	IP65
Ambient temperature	–10°C ~ +55°C
Humidity	20°C, RH ≤85%
Immunity to light	10000Lux (Angle of incidence ≥5°)
Anti-vibration	Frequency:10~55Hz,Amplitude:0.35mm
Impact resistance	10g, 16ms, 1000times at X,Y,Z axis

Models

Resolution 14mm				Resolution 21mm				Resolution 36mm
Model	Beam	H	L	Model	Beam	H	L	Model	Beam	H	L
SFD140172	24	172	200	SFD210165	12	165	200	SFD360150	6	150	200
SFD140232	32	232	260	SFD210225	16	225	260	SFD360210	8	210	260
SFD140292	40	292	320	SFD210285	20	285	320	SFD360270	10	270	320
SFD140352	48	352	380	SFD210345	24	345	380	SFD360330	12	330	380
SFD140412	56	412	440	SFD210405	28	405	440	SFD360390	14	390	440
SFD140472	64	472	500	SFD210465	32	465	500	SFD360450	16	450	500
SFD140532	72	532	560	SFD210525	36	525	560	SFD360510	18	510	560
SFD140592	80	592	620	SFD210585	40	585	620	SFD360570	20	570	620
SFD140652	88	652	680	SFD210645	44	645	680	SFD360630	22	630	680
SFD140712	96	712	740	SFD210705	48	705	740	SFD360690	24	690	740
SFD140772	104	772	800	SFD210765	52	765	800	SFD360750	26	750	800
SFD140832	112	832	860	SFD210825	56	825	860	SFD360810	28	810	860
SFD140892	120	892	920	SFD210885	60	885	920	SFD360870	30	870	920
SFD140952	128	952	980	SFD210945	64	945	980	SFD360930	32	930	980
SFD141012	136	1012	1040	SFD211005	68	1005	1040	SFD360990	34	990	1040
SFD141072	144	1072	1100	SFD211065	72	1065	1100	SFD361050	36	1050	1100
SFD141132	152	1132	1160	SFD211125	76	1125	1160	SFD361110	38	1110	1160
SFD141192	160	1192	1220	SFD211185	80	1185	1220	SFD361170	40	1170	1220
SFD141252	168	1252	1280	SFD211245	84	1245	1280	SFD361230	42	1230	1280
SFD141312	176	1312	1340	SFD211305	88	1305	1340	SFD361290	44	1290	1340
SFD141372	184	1372	1400	SFD211365	92	1365	1400	SFD361350	46	1350	1400
SFD141432	192	1432	1460	SFD211425	96	1425	1460	SFD361410	48	1410	1460
SFD141492	200	1492	1520	SFD211485	100	1485	1520	SFD361470	50	1470	1520
SFD141552	208	1552	1580	SFD211545	104	1545	1580	SFD361530	52	1530	1580
SFD141612	216	1612	1640	SFD211605	108	1605	1640	SFD361590	54	1590	1640
SFD141672	224	1672	1700	SFD211665	112	1665	1700	SFD361650	56	1650	1700
				SFD211725	116	1725	1760	SFD361710	58	1710	1760
				SFD211785	120	1785	1820	SFD361770	60	1770	1820
				SFD211845	124	1845	1880	SFD361830	62	1830	1880
